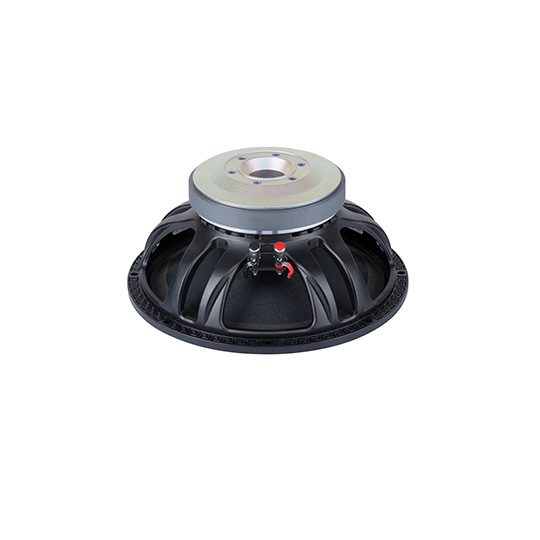

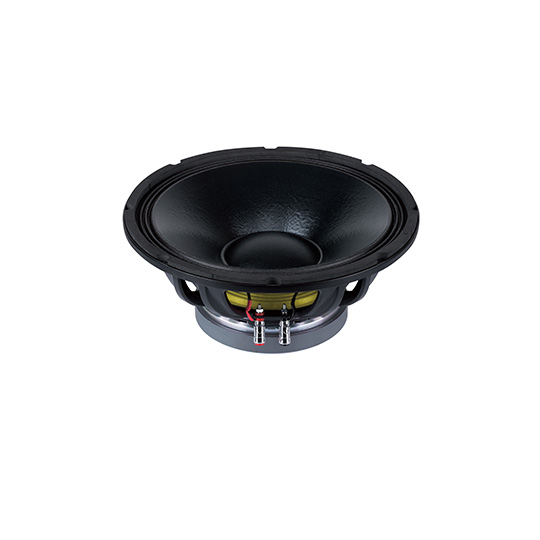

12FW75V1 LF Drivers 12 inchs

Notes

3 INCH EDGEWOUND CCA VOICE COIL

97 dB/SPL SENSITIVITY

800 WATT PROGRAM POWER HANDING

FEM OPTIMIZED MOTOR AND SUSPENSIONS

OPTIMIZED COOLING SYSTEM

RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

GENERAL SPECIFICATIONS

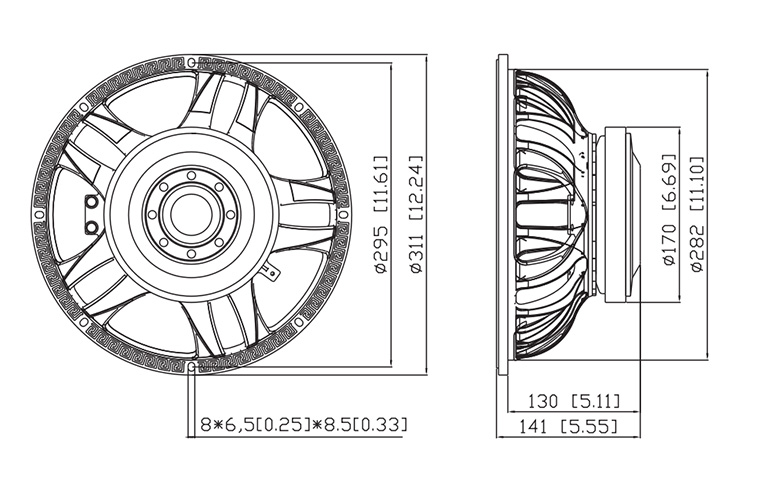

Nominal diameter 311(12) mm (in.)
Nominal impedance 8 Ω
Minimum impedance 6.6 Ω
Program power (1) 800 W
AES Power rating(2) 400 W
Sensitivity (3) 97 dB

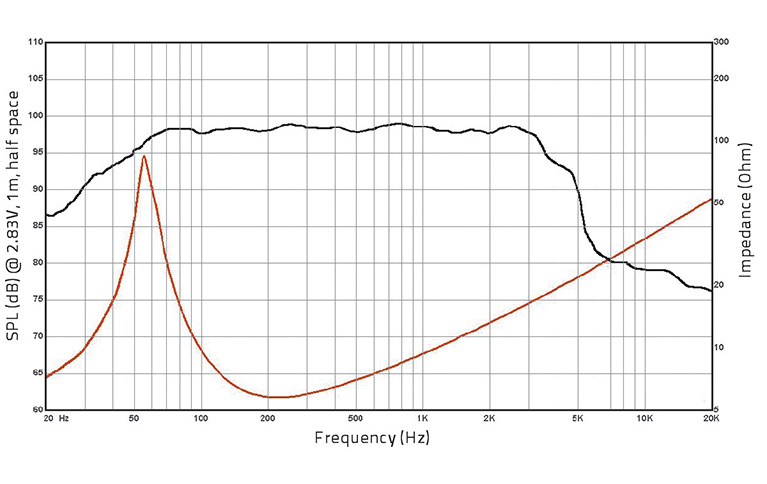

Frequency range 58 ~ 3500 Hz
Voice coil diameter 75(3) mm (in.)
Chassis material Aluminium
Magnet material Ferrite
Magnet dimensions (ODxIDxh) 170 x 85 x 20 mm
Coil material CCAW
Former material Glass Fiber
Xmax(4) 6 mm
Xmech(5) 11.5 mm
Gap height 9 mm
Voice coil Wingding height 18 mm

SMALL SIGNAL PARAMETERS

DC resistance(Re) 5.3 Ω
Resonance frequency(Fs) 58 Hz
Moving mass(Mms) 65 g
Compliance(Cms) 0.15 mm/N
Force factor(BL) 17.50 N/A
Mechanical Q-factor(Qms) 4.3
Electrical Q-factor(Qes) 0.36
Total Q-factor(Qts) 0.33
Equivalent air volume(Vas) 60 I
Voice coil Inductance(Le) 0.75 mH
Diaphragm area(Sd) 542 cm2
Reference efficiency(Eta O) 2.6 %

SHIPPING INFORMATION

Net weight 5.4 Kg
Multipack size (1) (W x D x H) 325 x 325 x 175 mm
Multipack weight 6 Kg

OTHERS

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
