- 5 INCH COPPER VOICE COIL

- 96.7 dB/SPL SENSITIVITY

- 3000 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- 46m PEAK TO PEAK MAXIMUM EXCURSION

- OPTIMIZED COOLING SYSTEM

- DOUBLE SPIDER

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

- TRIPLE ROLL SURROUND

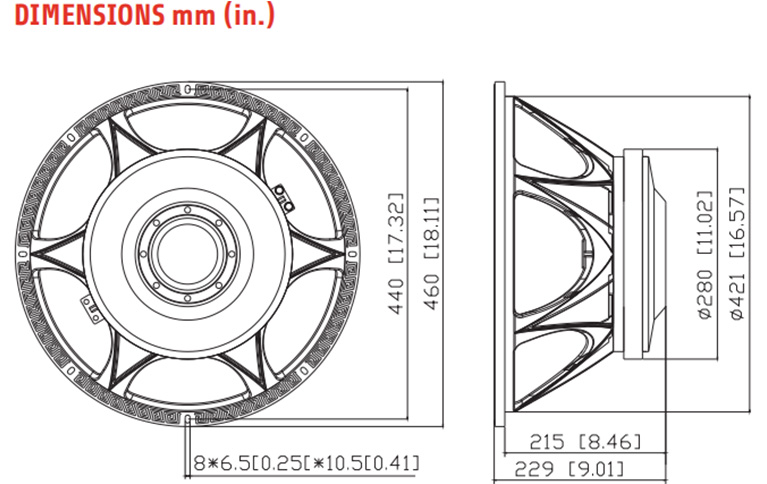

Nominal diameter	460(18) mm (in.)
Nominal impedance	8 Ω
Minimum impedance	7.5 Ω
Program power (1)	3000 W
AES Power rating(2)	1500 W
Sensitivity (3)	96.7 dB

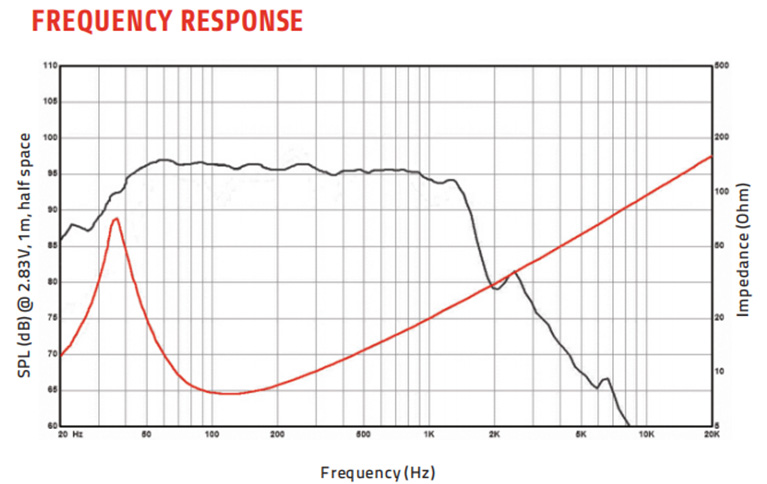

Frequency range	36~1000 Hz
Voice coil diameter	125(5) mm (in.)
Chassis material	Aluminium
Magnet material	Ferrite
Magnet dimensions (ODxIDxh)	280x140x25 mm
Coil material	SV
Former material	Glass Fiber
Xmax(4)	14.5 mm
Xmech(5)	23 mm
Gap height	14 mm
Voice coil Winding height	36 mm

DC resistance(Re)	6 Ω
Resonance frequency(Fs)	36.1 Hz
Moving mass(Mms)	255 g
Compliance(Cms)	0.07 mm/N
Force factor(BL)	29.1 N/A
Mechanical Q-factor(Qms)	7.5
Electrical Q-factor(Qes)	0.40
Total Q-factor(Qts)	0.38
Equivalent air volume(Vas)	197 I
Voice coil Inductance(Le)	2.96 mH
Diaphragm area(Sd)	1325 cm2
Reference efficiency(Eta O)	2.62 %

Net weight	20.8 Kg
Multipack size (1) (W x D x H)	485 x 485 x 260 mm
Multipack weight	22.6 Kg

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
