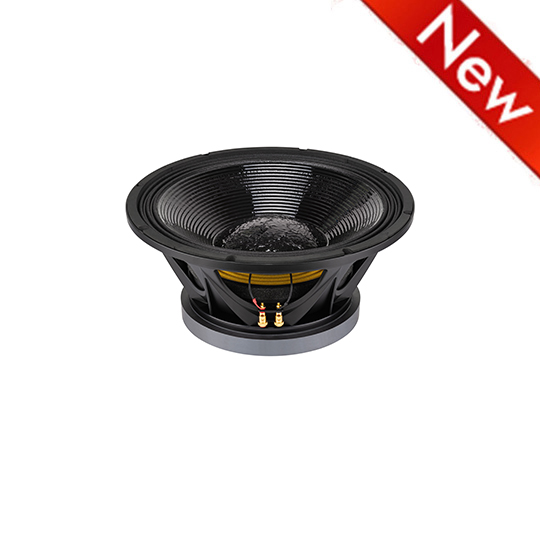

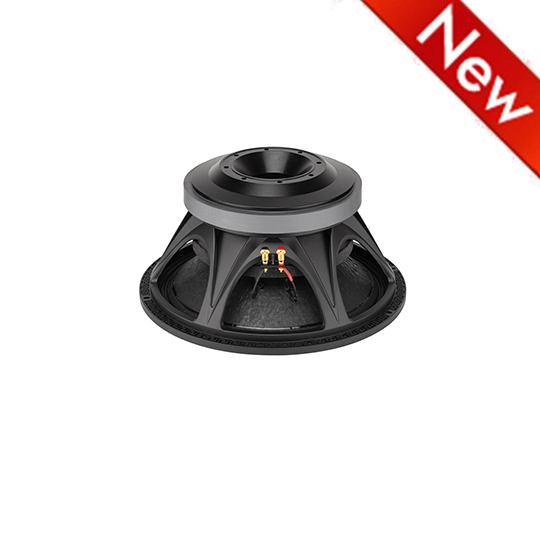

18FWS151V1 Subwoofers 18 inchs

Notes

- 6 INCH COPPER VOICE COIL

95.1 dB/SPL SENSITIVITY

4000 WATT PROGRAM POWER HANDING

FEM OPTIMIZED MOTOR AND SUSPENSIONS

50mm PEAK TO PEAK MAXIMUM EXCURSION

OPTIMIZED COOLING SYSTEM

DOUBLE SPIDER

RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

TRIPLE ROLL SURROUND

GENERAL SPECIFICATIONS

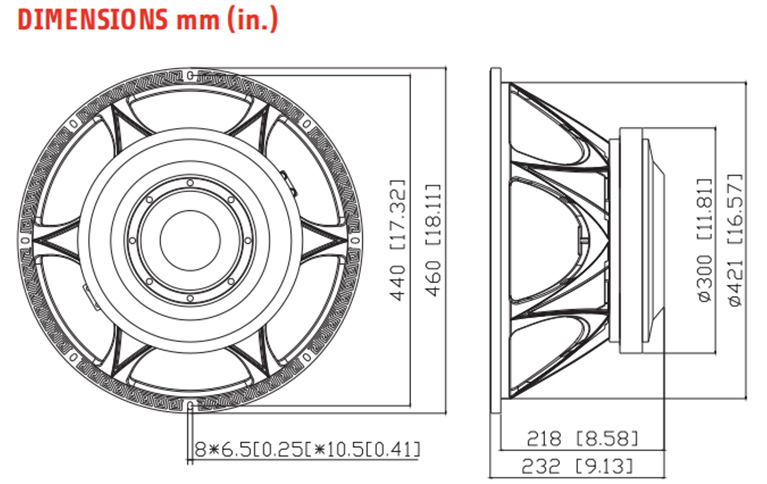

Nominal diameter 460(18) mm (in.)
Nominal impedance 4 Ω
Minimum impedance 4.6 Ω
Program power (1) 4000 W
AES Power rating(2) 2000 W
Sensitivity (3) 95.1 dB

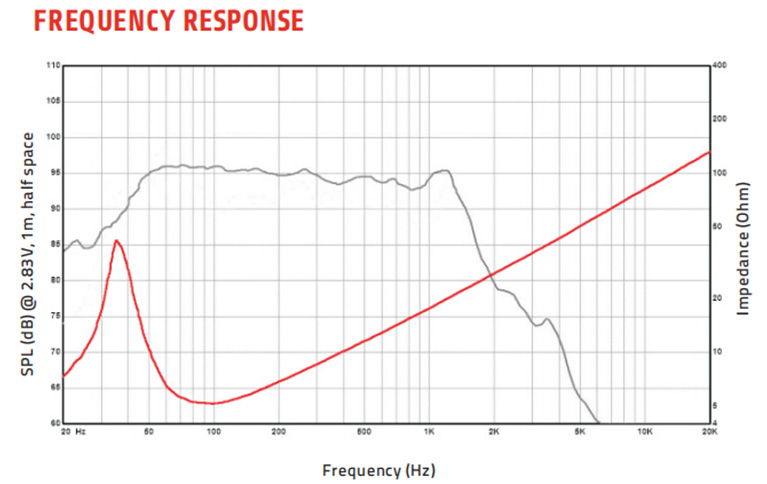

Frequency range 35~1000 Hz
Voice coil diameter 151(6) mm (in.)
Chassis material Aluminium
Magnet material Ferrite
Magnet dimensions (ODxIDxh) 300 x 170 x 30 mm
Coil material SV
Former material Glass Fiber
Xmax(4) 16.5 mm
Xmech(5) 25 mm
Gap height 14 mm
Voice coil Winding height 40 mm

SMALL SIGNAL PARAMETERS

DC resistance(Re) 3.6 Ω
Resonance frequency(Fs) 34.7 Hz
Moving mass(Mms) 365 g
Compliance(Cms) 0.06 mm/N
Force factor(BL) 26.3 N/A
Mechanical Q-factor(Qms) 6.8
Electrical Q-factor(Qes) 0.44
Total Q-factor(Qts) 0.42
Equivalent air volume(Vas) 159 I
Voice coil Inductance(Le) 3.27 mH
Diaphragm area(Sd) 1325 cm2
Reference efficiency(Eta O) 2.1 %

SHIPPING INFORMATION

Net weight 24 Kg
Multipack size (1) (W x D x H) 485X485X270 mm
Multipack weight 25.8 Kg

OTHERS

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
